Project Presence- Secured by Design
Year Live Project - 2016 (Re-visited in 2019)
Context A live project ran by Yale and West Yorkshire Police, support by Secured by Design Society
Awards Selected to be presented at an event organised by the Secured by Design Society
This project came off the back of a live project working with West Yorkshire Police and their Force Crime Prevention Officer. It explores how products can be used to both secure the contents of the home and add an element of reassurance to the homeowner. The ecosystem works of the premise of 'Prevention is better than cure'.
Often, home-burglars will check the house isn't occupied by ringing the doorbell. If there is even a hint of movement within the home, they will often move-on as the potential risk is too high. Presence’s holistic design incorporated fluid, concise and intuitive UX into the family of products. The mobile application is the control centre of the product-range, and ties the CCTV Camera, Doorbell, Smart Light and Keypad together. Animations communicate how the mobile application’s interface operates. This were designed in both Adobe Illustrator and Adobe XD, and then Animated in Adobe After-effects.
'We saw this opportunity to create a solution that created a more considered user experience that placed the patient at the centre of focus'.
A vast array of research was carried out, from in-depth secondary research through to focus groups and face-to-face interviews... all with the aim of building up a scenario and gaining empathy of the user.
Once the initial phase of in depth research was concluded, the 6 key problematic areas were identified. These formed the areas of focus for the design phase. Using the 'Morph' method of ideation, ideas were rapidly generated. The ideas with the most potential were then selected and chosen to be developed in the next phase of development.

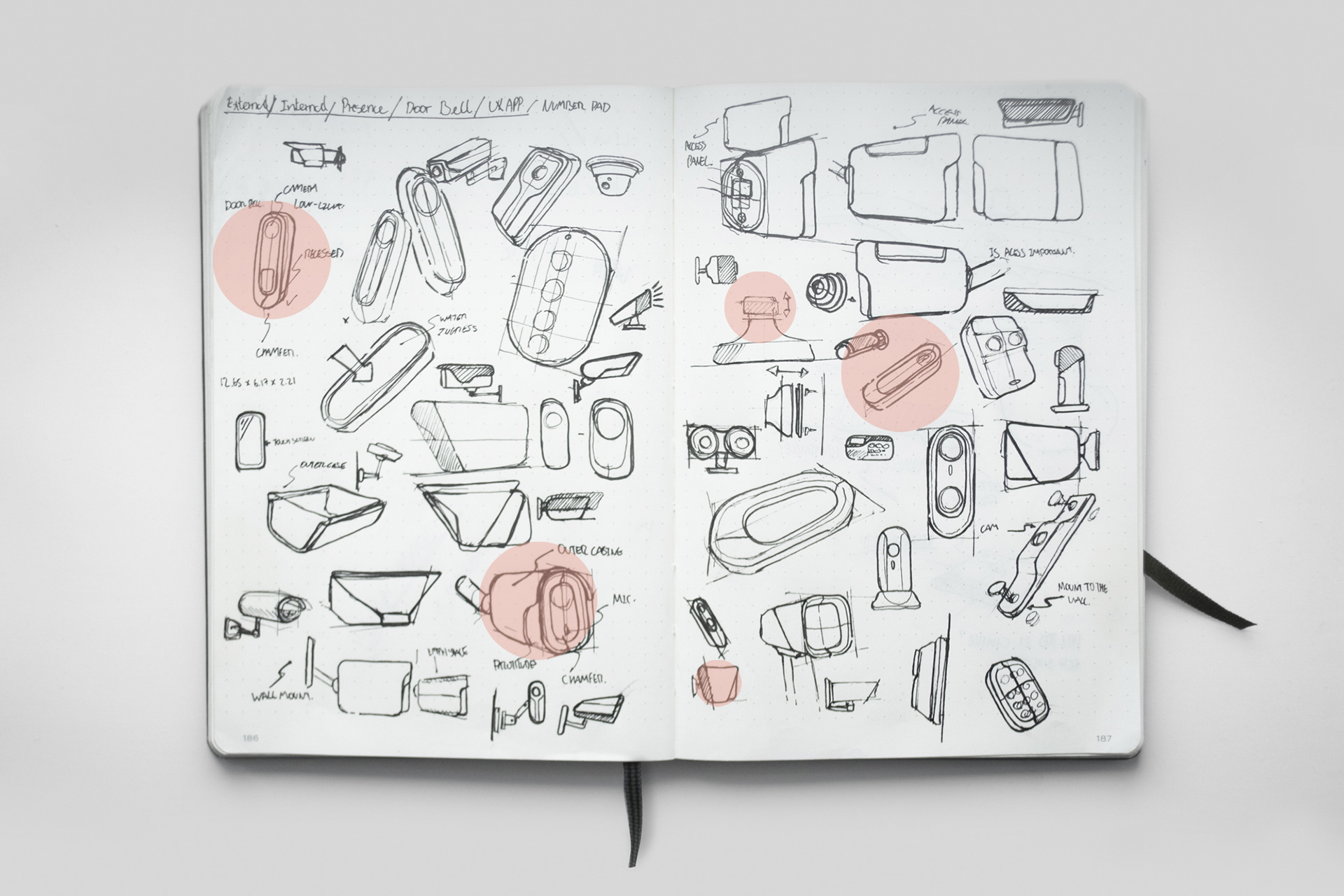

Quick, loose sketching was used to explore a general form and method of interaction. This stage was vital due to the array of hardware within the eco-system; a consistent DNA was needed to be established across the products to ensure that they worked in harmony with each other.
So, why in a notebook? When I carried out this project, I was commuting; so why bring some productivity to the mundane and monotonous train ride. More to the point, the need not be pretty; they just need to be clear enough to effectively communicate the ideas.
Prototyping and testing

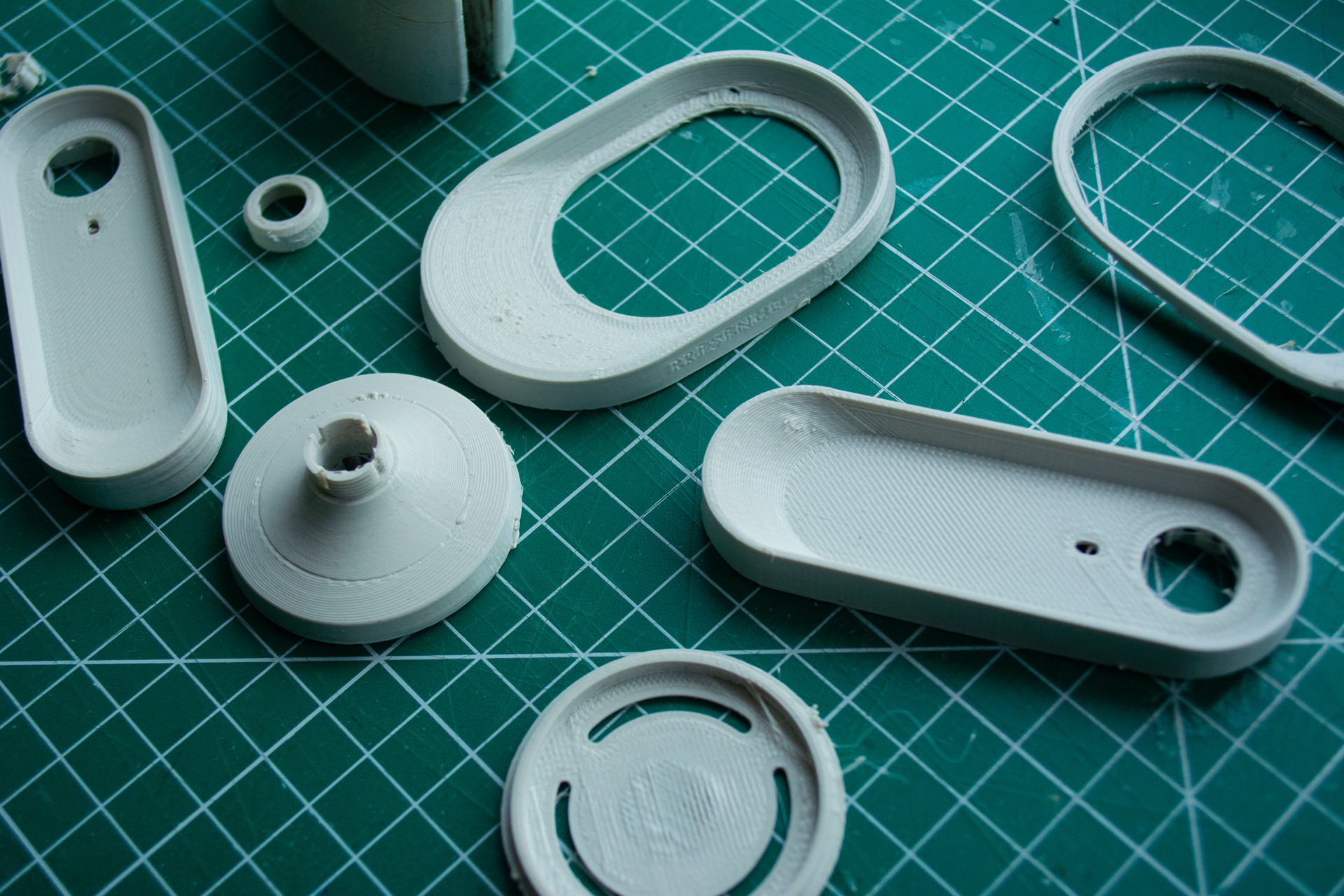

The method of low-fidelity prototyping chosen was 3D printing, as it allowed quick exploration of the organic shape. It allowed for multiple iterations of the device to be created rapidly whilst allowing the analysis of manufacturing aspects. This was particularly important for the casing of the doorbell, as it features an injection moulded main-body which snap-fits to the rear panel... but more on that later.
So, what's so unique about Presence?
The ecosystem works of the premise of 'Prevention is better than cure'. Often, home-burglars will check the house isn't occupied by ringing the doorbell. If there is even a hint of movement within the home, they will often move-on as the potential risk is too high.

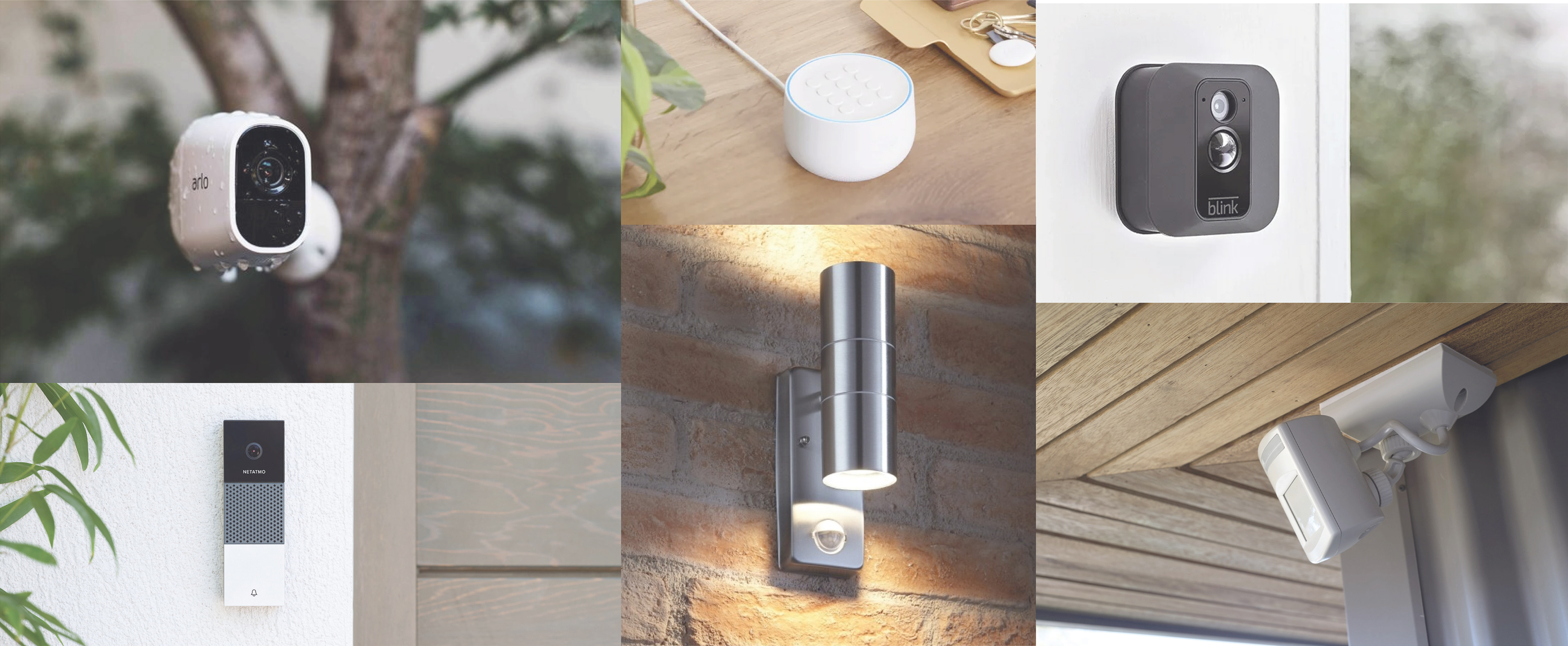

With smart devices neatly integrating themselves into out homes and everyday lives, it was only an amount of time before doorbells received the same smart treatment. Ring and Google have made a name for themselves within this market, but, like always, there is room for potential.
Hardware 01 - The Doorbell

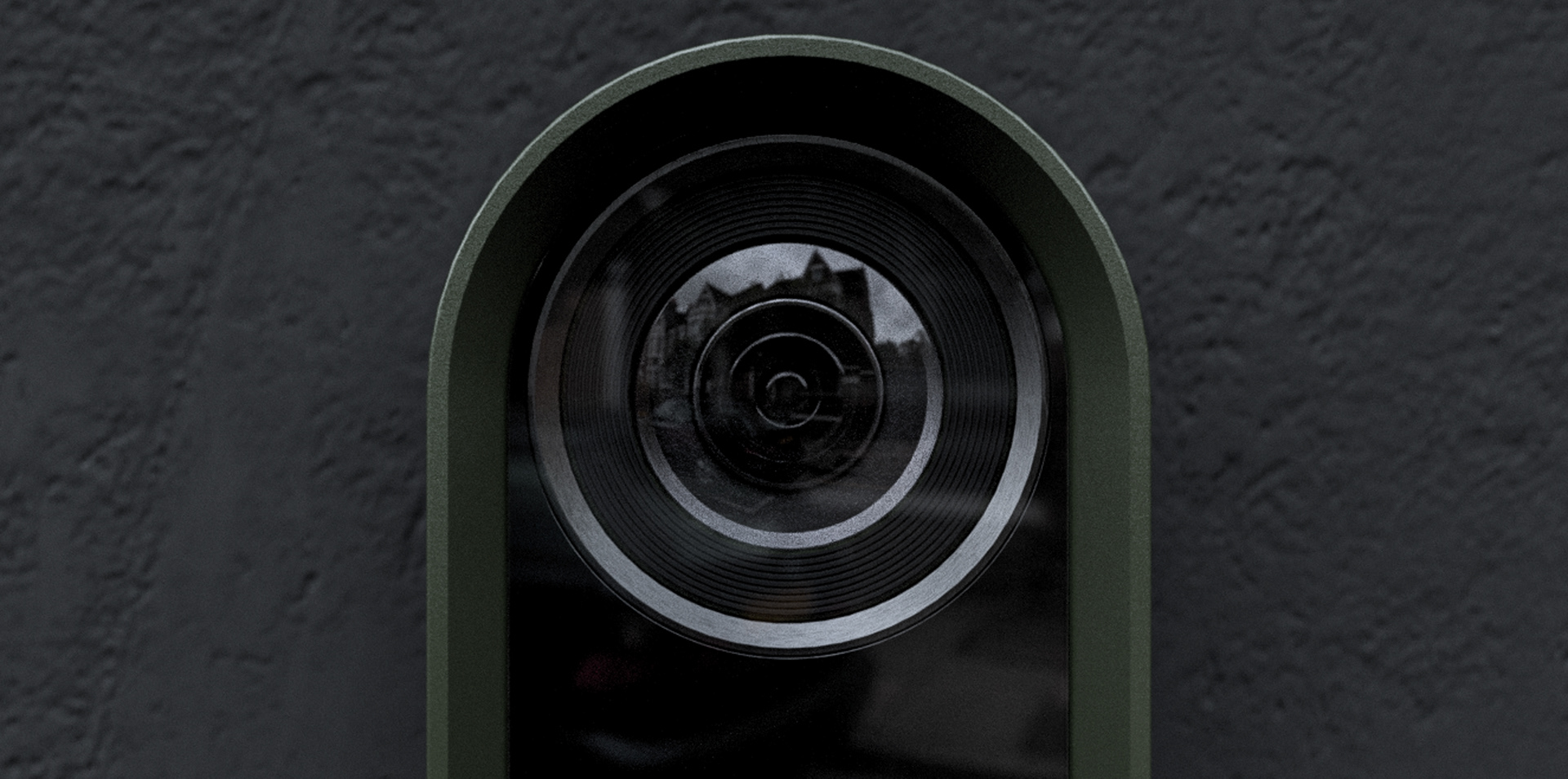

This doorbell carries a far more inconspicuous form, which is certainly a leap away from Ring's bulky form. The out-casing features a variable internal chamfer that has is shallower towards the bottom; this not only adds visual interest, but also guides the user towards the large, central button.
Design for Manufacture
The components that make this doorbell so smart are concealed within the injection formed outer housing. The construction takes into account the ever-changing and often brutal conditions that it would be faced against.

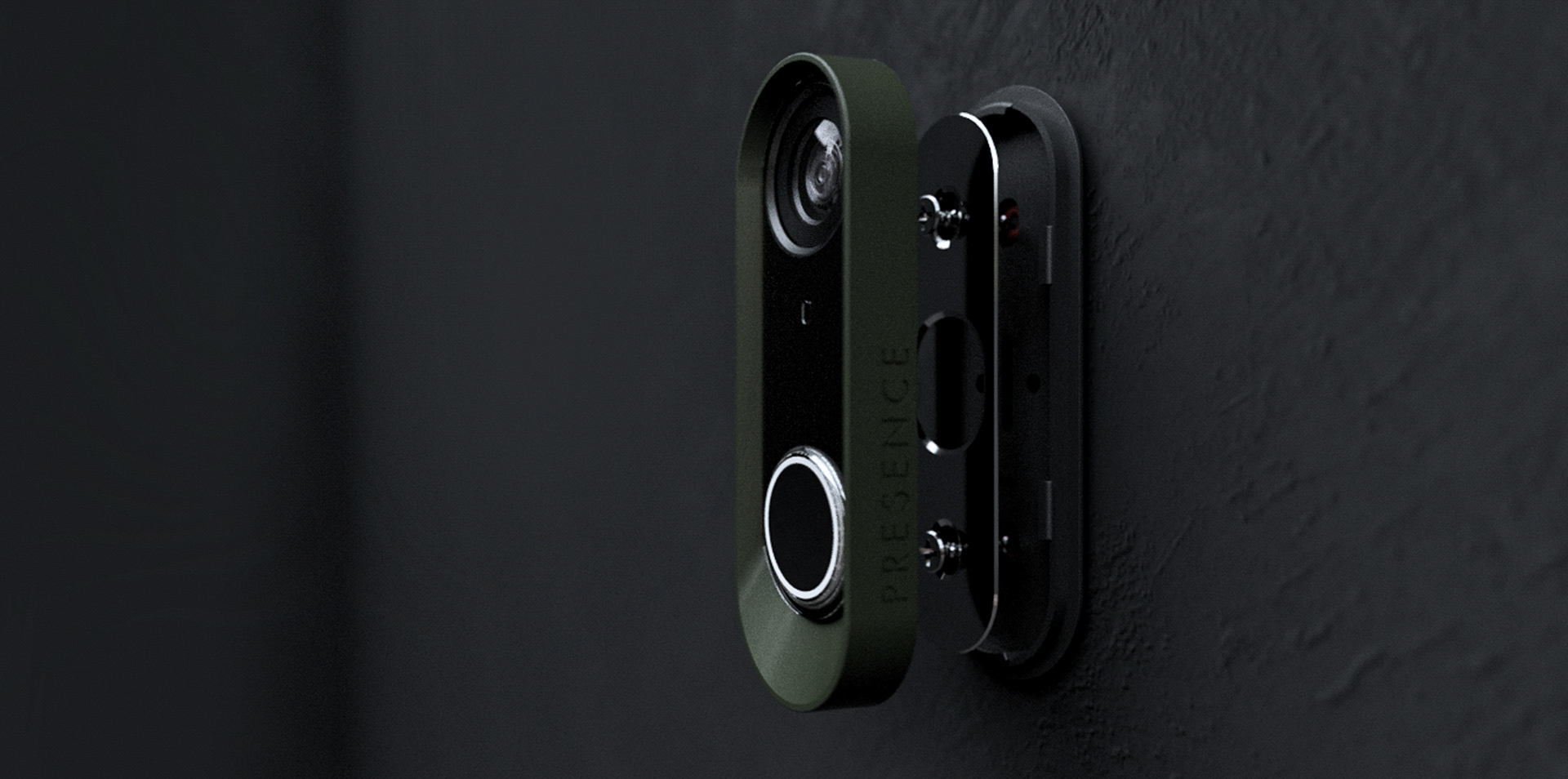

The user experience starts prior to turning the device on. Installation is a fundamental aspect of this experience, so making it as intuitive and straight-forward as possible was key. The back of the doorbell is attached to the wall using two M16 wall screws. The main unit then attaches directly to the back panel using snap-fits.
Hardware 02 - The Smart-bulb

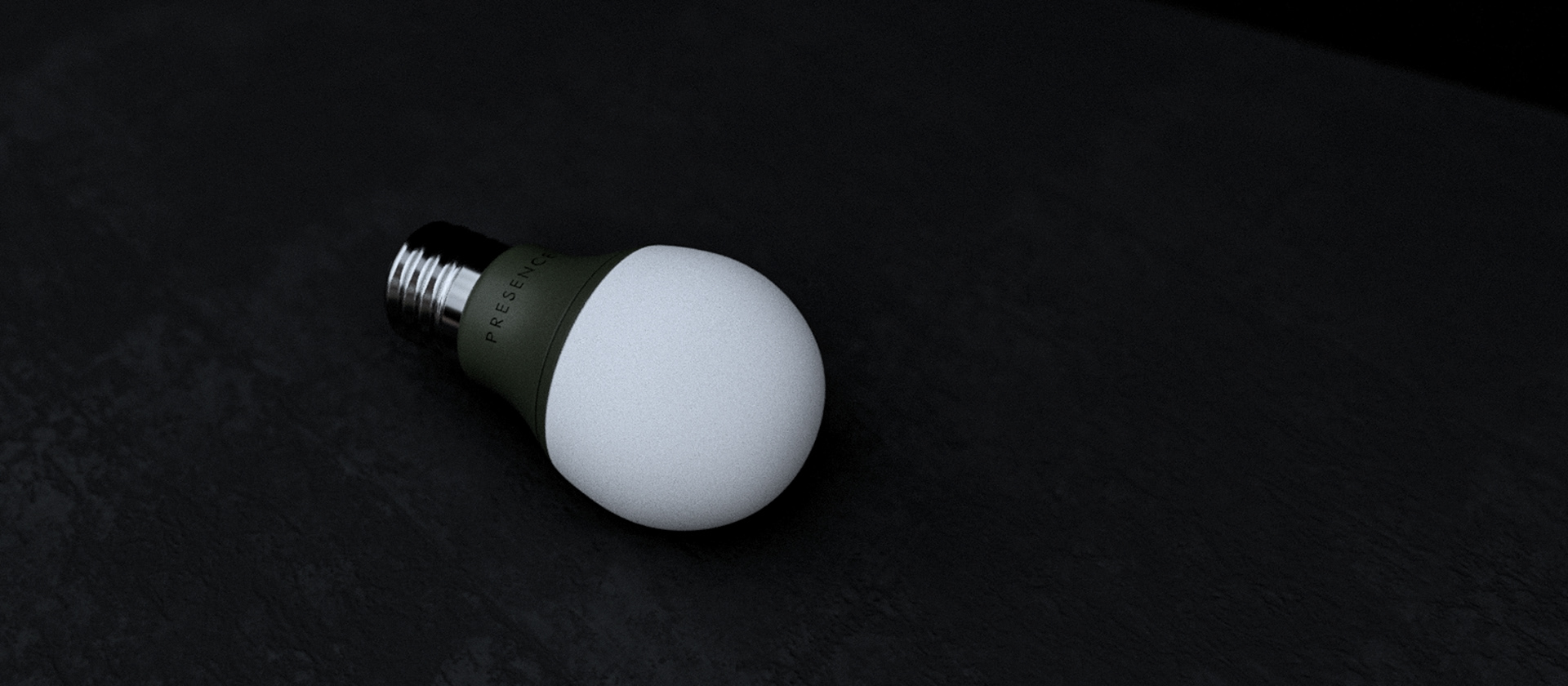

A smart-bulb isn't something to be stared at, therefore the aesthetics need to be considered but not over-designed. Efficient manufacturing methods must be considered ahead of any unnecessary design features. However, it is still vital that it fits within the product-line up. Aside from its smart-connectivity, the bulb itself is nothing more than a 5.5W LED Golf-ball; it would illuminate the bulb, just how the user desires.
Hardware 03 - The Security Monitor
Whilst the innovative doorbell and smart-light is one layer of security, Presence is far more than just this. The distinctive design language from the doorbell is directly carried through to the compact external camera. Multiple cameras can be connected to the same family of devices, allowing for a comprehensive over-view of the property.
The outer-casing overhangs the front façade of the camera, offering the lens a layer of protection as well as bring a unique design feature. The angle of the camera is adjusted via the wall-mount at the rear of the device. The user can loosen the mount with there fingers, eliminating the need for tools.
Hardware 03 - The Security Monitor

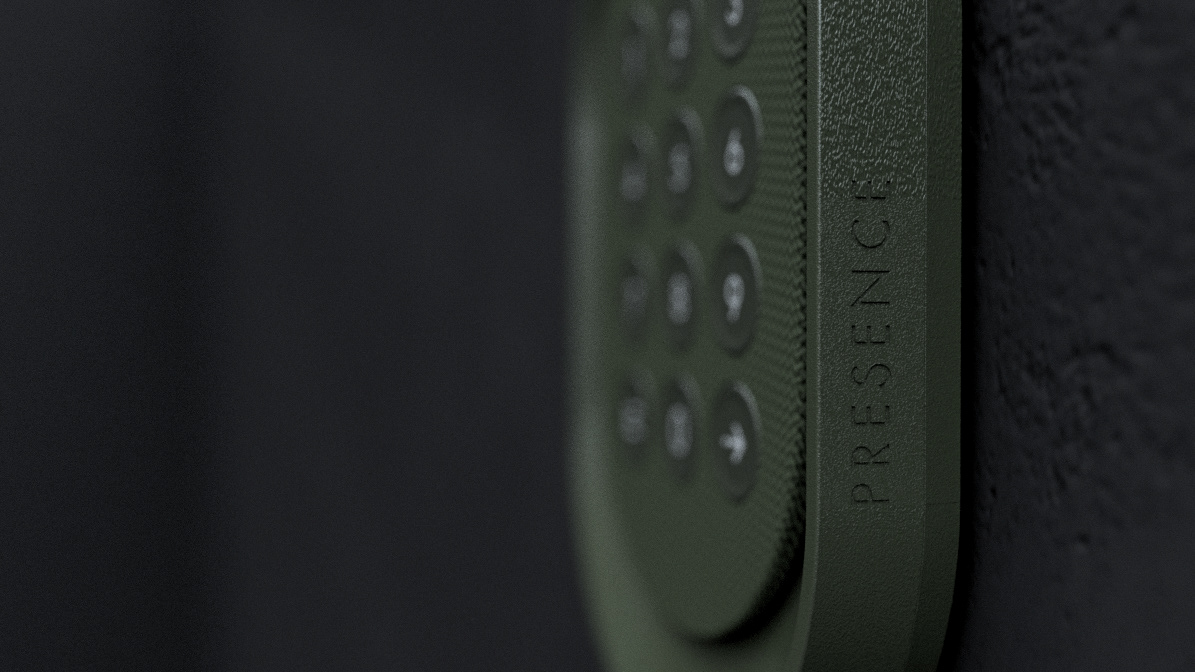

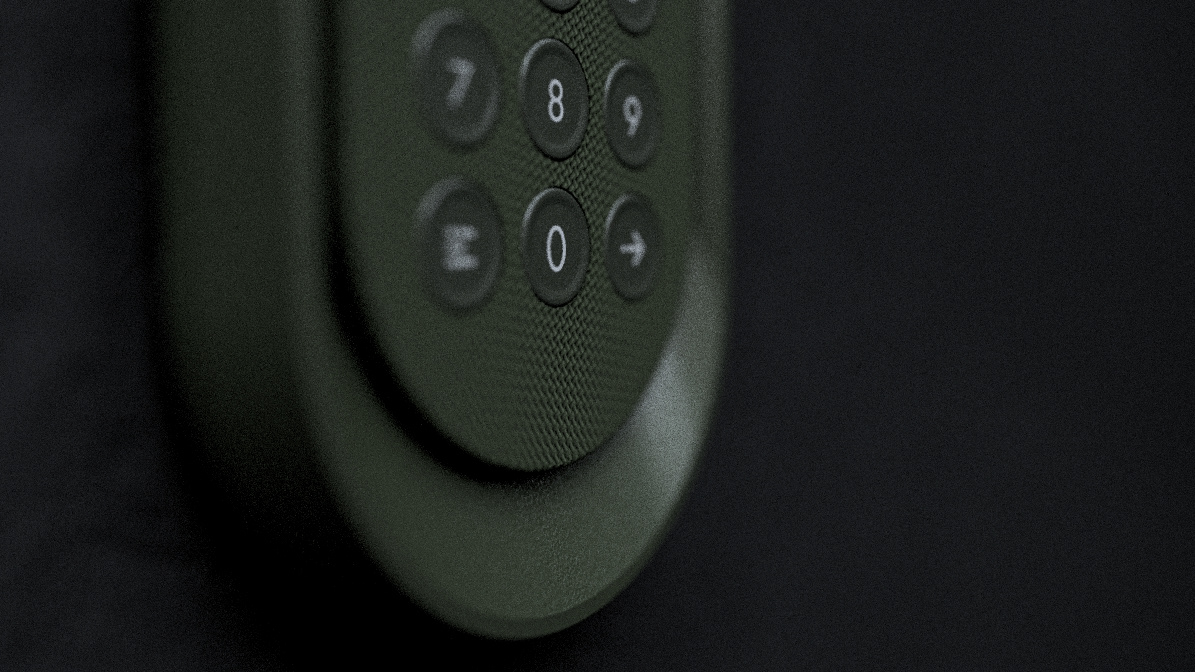

Rounding off the hardware aspect of the family of devices is the wall-mounted keypad. Due to its intended environment being inside the house, it takes on a much more domestic aesthetic, with help from the fabric finish that cover the central part of the device.
I felt that an interface would be an unnecessary addition to the device, seeing that the device is controlled solely by the mobile application. However, the user would still rely on an element of feedback, and this would come from the LED indicator positioned at the top of the device.
Digital Touchpoint - UX/UI Design
Completing the family is the mobile application, where all components of Presence are controlled. With houses becoming increasingly connected, with its occupants wanting to be in control of every element, incorporating the mobile application to presence was a no-brainier.
Establishing the user-flow was the primary task for this aspect of the project. below you can see an over-view of the user experience, and how everything centres around, and is accessible from, the homepage.
The typography and graphic style was the next step. The typeface needed to complement the friendly, welcoming aesthetic of the Presence's hardware. For this reason, I settled on the Futura Family.

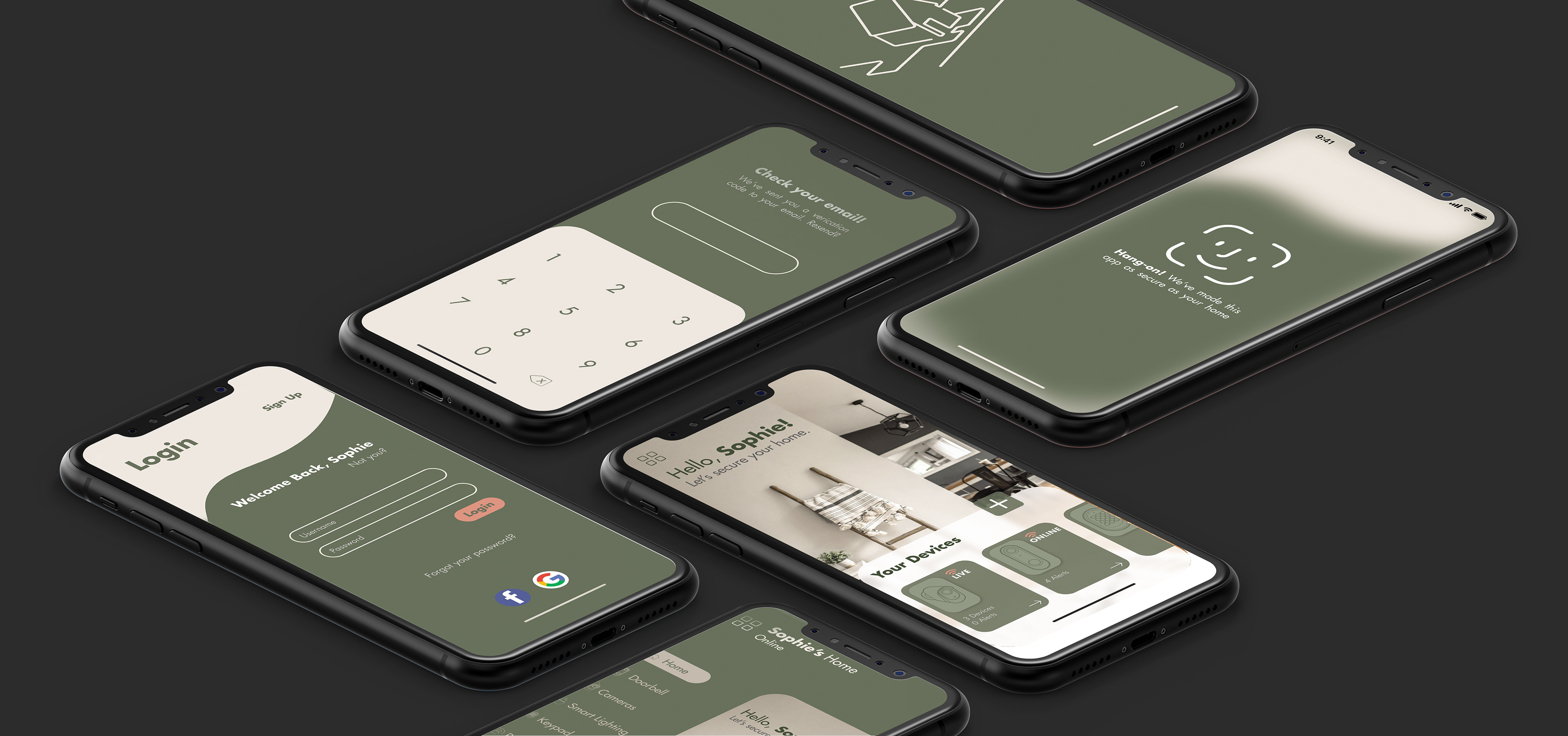

The main elements of UX can be seen below, each sharing the same minimal and concise interface.

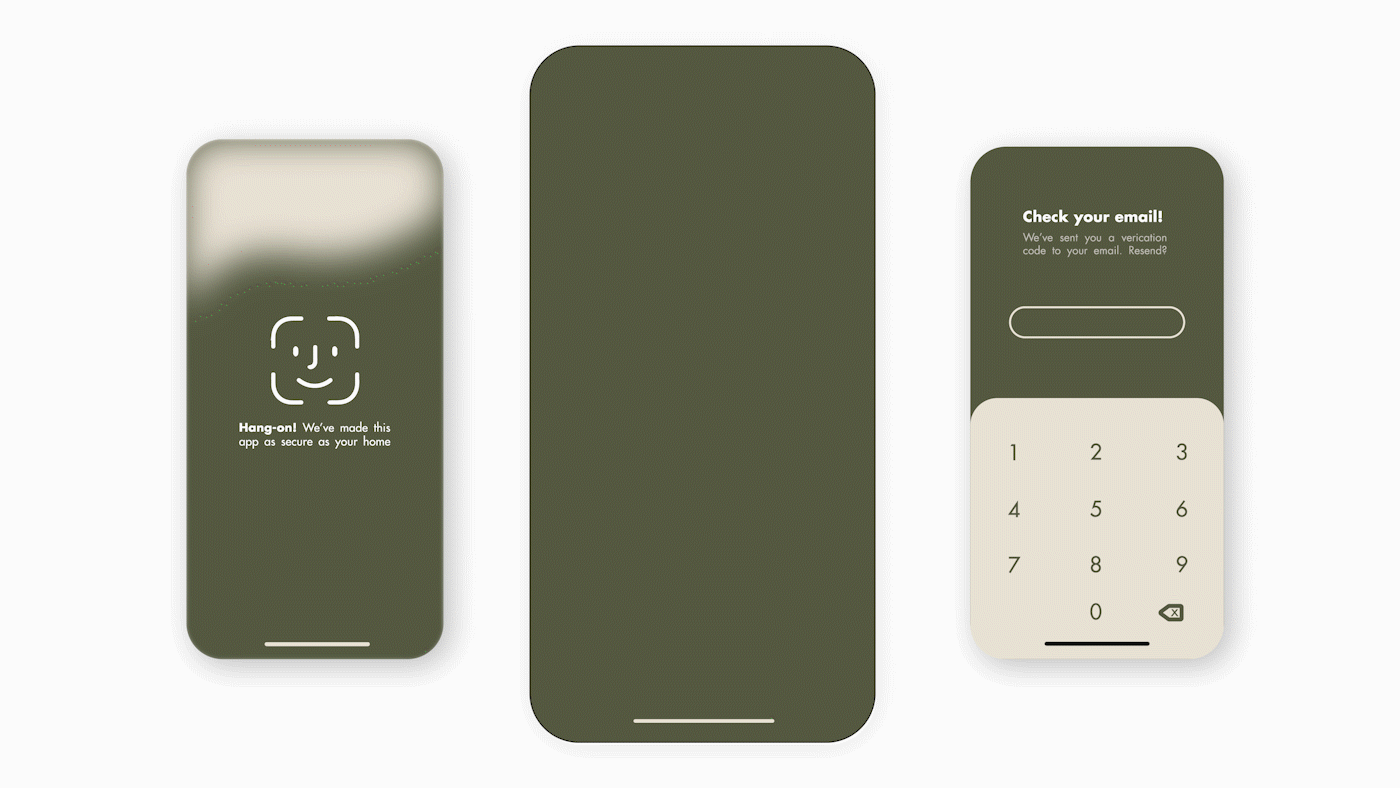

Something that flat images of UX don't communicate is the type of motion that the app will carry. Motion can transform the feeling of the application, so for this project I wanted to emphasise the friendly and welcoming nature of Presence. Quick, snappy and

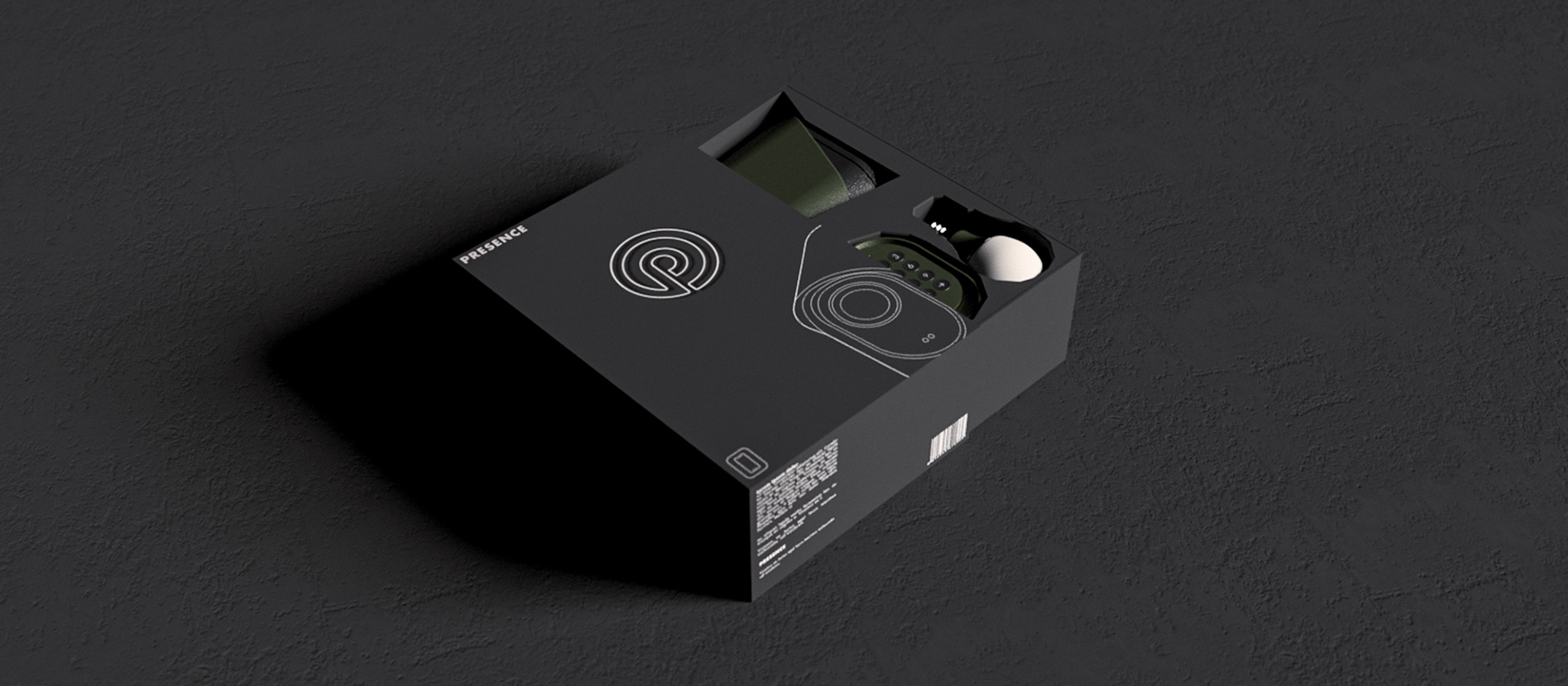

The packaging has been designed to become part of the entire user-experience; minimal graphical-treatment compliments the design language of the produces that are house inside of the packaging.
